Biochip Langdao (Tianjin)Medical Technology Limited

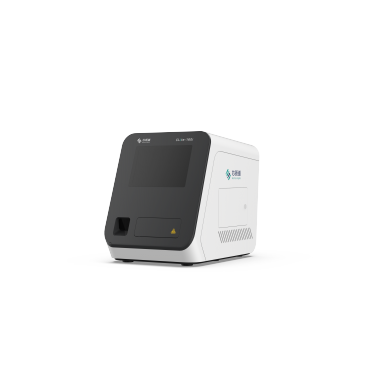

Automatic chemiluminescence immunoanalyzer (Model: CLite-160i)

I. Equipment parameters

[Equipment name] : Automatic chemiluminescence immunoanalyzer

[Equipment model] : Clite-160i

[Device flux] : 6 channels

[Equipment precision] : ≤5%

[Detection time] : less than 20min

[Detection principle] : magnetic particle chemiluminescence method

[Device size] : 585mm*390mm*488mm

[Equipment weight] : 20kg

II. Detection principle

The Clite-160i automatic chemiluminescence analyzer uses enzymatic chemiluminescence method based on AMPPD and alkaline phosphatase, and is used together with supporting detection reagents to quantitatively detect analytes in serum, plasma or other samples that meet test requirements from human beings, including infectious diseases, cardiac diseases, hormone items, etc.

III. Equipment characteristics

1.Fast detection, results within 20 minutes;

2.6 channel design, samples and test items can be arbitrarily combined according to clinical needs;

3.Reagent card with TIP head;

4.All items do not need manual dilution;

5.High sensitivity, good specificity, can achieve high sensitivity troponin detection;

6.Equipment no liquid path, maintenance-free;

7.The software is easy to operate;

8.Two-point calibration, simpler, more reagent saving;

9.Large touch screen, clear and beautiful interface;

10.Equipment pure mechanical structure, strong and durable.

IV. The device can detect the company's product menu

Note: * For the company in the registered project.
